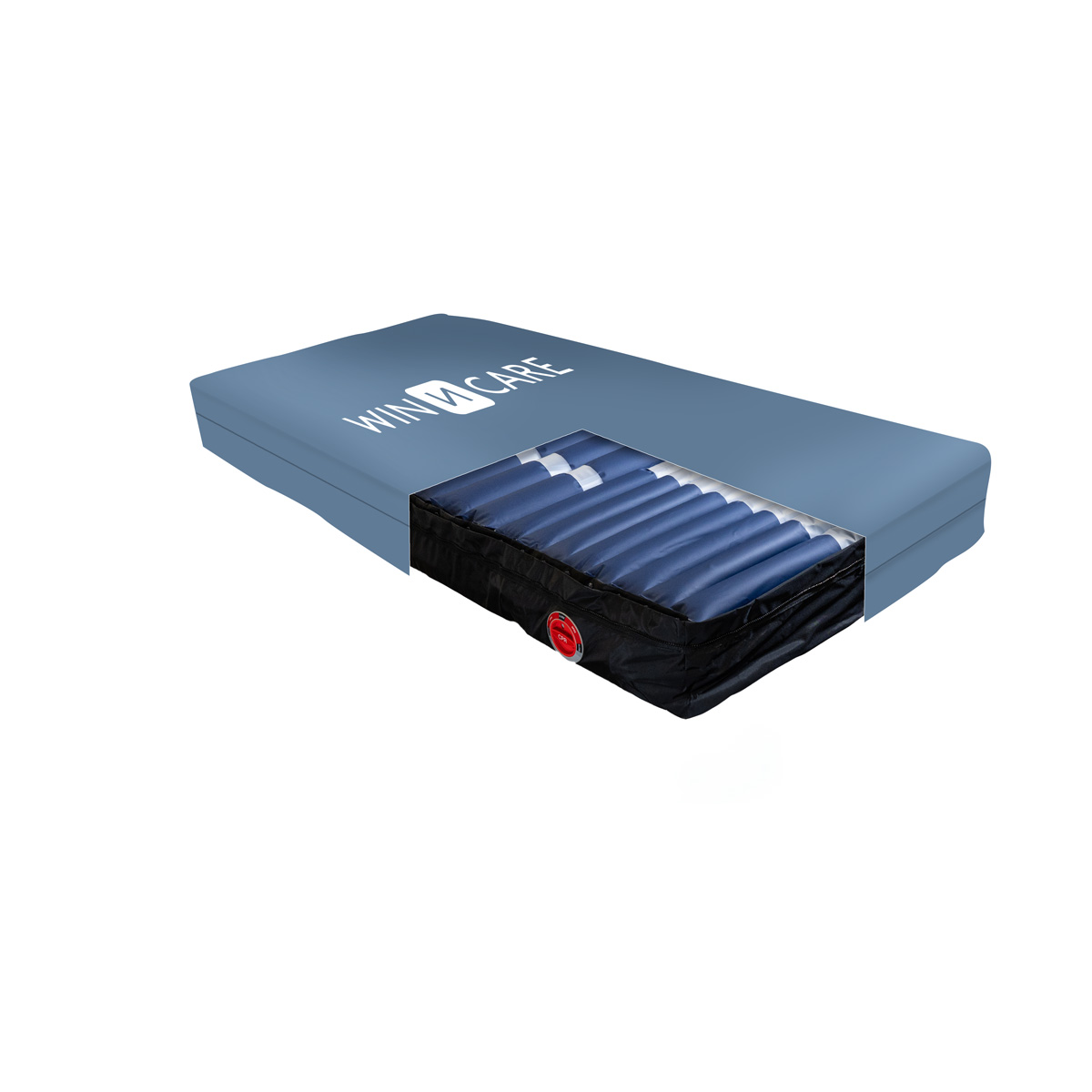

PURE AIR 8 ACUTE

Industry-leading low interface pressures provide effective pressure redistribution, via immersion and off-loading, due to optimal internal cell pressures.

Improve patient safety and concordance with a stable platform, with shock absorber-like support that doesn't bend or slip, due to the pioneering figure of 8 air cells with i-Beam.

Patients can rest easy and sleep effectively due to the smooth movement within the surface which supports patient comfort owing to a patented cell changeover pattern.

Technical Specifications

MATTRESS

Max user weight

250 kg

Dimensions

200 cm x 88 cm x 20 cm

Number of cells

23 (3 static head end cells, 20 alternating)

Inflated cell height

20 cm

Alternation cycle

1 in 2

Initial inflation time

20 mins

Cell material

TPU

Internal cell pressure

13 – 70 ±2mmHg Constant Low Pressure Mode: 10 – 40 ±2mmHg Pulsation Mode: 80% & 120% of CLP setting. Max Inflate: 40 ±2mmHg

Top cover

Multi-stretch polyurethane

Seams

High frequency welded

CPR

Easy turn dial (deflates within 30 seconds)

Transport mode

24 hours via one way valve

Cleaning

Machine washable up to 95°c

CONTROL UNIT

Dimensions

39 cm x 14.5 cm x 18 cm

Weight

4.1 kg

Max inflate

Auto-return to therapy after 20 mins

Cell cycle time

10, 15, 20 mins

Pressure adjustment

Fully automatic

Noise level

<40 dB(A)

Alerts

Audible low pressure alert with alert mute

Control panel lock

Yes

Improve patient safety and concordance with a stable platform, with shock absorber-like support that doesn't bend or slip, due to the pioneering figure of 8 air cells with i-Beam.
